The nature of collaboration is the flow of information. So naturally I get asked about Workflows and its incarnation in IT systems a lot. Many of the question point to a fundamental confusion what Workflow is, and what it isn't. This entry will attempt to clarify concepts and terminology
Wikipedia sums it up nicely: " A workflow consists of an orchestrated and repeatable pattern of business activity enabled by the systematic organization of resources into processes that transform materials, provide services, or process information. It can be depicted as a sequence of operations, declared as work of a person or group,[2] an organization of staff, or one or more simple or complex mechanisms".
Notably absent from the definition are: "IT system", "software", "flowchart" or "approval". These are all aspects of the implementation of a specific workflow system, not the whole of it. The Workflow Management Coalition (WfMC) has all the specifications, but they might appear as being written in a mix of Technobabble and Legalese, so I sum them up in my own words here:

• A workflow has a business outcome as a goal. I personally find that a quite narrow definition, unless you agree: "Spring cleaning is serious business". So I would say: a collection of steps, that have been designed to be repeatable, to make it easier to achieve an outcome. So a workflow is an action pattern, the execution of a process. It helps to save time and resources, when it is well designed and can be a nightmare when mis-fitted
• A workflow has an (abstract) definition and zero or more actual instances where the workflow is executed. Like: "Spring cleaning requires: vacuuming, wiping, washing" (abstract). "Spring cleaning my apartment on March 21, 2014" (actual). Here lies the first challenge: can - and how much - a workflow instance deviate from the definition. How have cases to be handled when the definition changes in the middle of the flow execution? How to handle workflow instances that do require more or less steps? When is a step mandatory for regulatory compliance?
• A workflow has one or more actors. In a typical approval workflow the first actor is called requestor, followed by one or more approvers. But actors are not limited to humans and the act of approving or rejecting. A workflow actor can be a piece of software that adds information to a flow based on a set of criteria. A typical architecture for automated actors is SOA
• Workflow systems have different magnitudes. The flagship products orchestrate flows across multiple independent systems and eventually across corporate boundaries, while I suspect that the actual bulk of (approval) flows runs in self contained applications, that might use coded flow rules, internal or external flow engines
• On the other end of scale eMail can be found, where the flow and sequence are hidden in the heads of the participants or scribbled into freeform text
• Workflows can be described in Use Cases, where the quality depends on the completeness of the description, especially the exception handling. A lot of Business Process Reengineering that is supposed to simplify workflows fails due to incomplete exception handling and people start to work "around the system" (eMail flood anyone?)
• A workflow definition has a business case and describes the various steps. The number of steps can be bound by rules (e.g. "the more expensive, the more approvers are needed" or "if the good transported is HazMat approval by the environmental agency is needed") that get interpreted (yes/no) in the workflow instance
• Determine the next actor(s) is a task that combines the workflow instance step with a Role resolver. That's the least understood and most critical part of a flow definition. Lets look at a purchase approval flow definition: "The requestor submits the request to approval by the team lead, to be approved by the department head for final confirmation by the controller". There are 4 roles to resolve. This happens in context of the request and the organisational hierarchy. The interesting question: if a resolver returns more than one person, what to do? Pick one randon, round robin or else how?
• A role resolver can run on submission of a flow or at each step. People change roles, delegate responsibilities or are absent, so results change. Even if a (human) workflow step already has a person assigned, a workflow resolver is needed. That person might have delegated a specific flow, for a period (leave) or permanently (work load distribution). So Jane Doe might have delegated all approvals below sum X to her assistant John Doe (not related), but that doesn't get reflected in the flow definition, only in the role resolution
• Most workflow systems gloss over the importance of a role resolver. Often the role resolver is represented by a rule engine, that gets confused with the flow engine. Both parts need to work in concert. We also find role resolution coded as tree crawler along an organisational tree. Role resolving warrants a complete post of its own (stay tuned)
• When Workflow is mentioned to NMBU (normal mortal business users), then two impressions pop up instantly: Approvals (perceived as the bulk of flows) and graphical editors. This is roughly as accurate as "It is only Chinese food when it is made with rice". Of course there are ample examples of graphical editors and visualizations. The challenge: the shiny diagrams distract from role definitions, invite overly complex designs and contribute less to a successful implementation than sound business cases and complete exception awareness
• A surprisingly novel term inside a flow is SLA. There's a natural resistance, that a superior (approver) might be bound by an action of a subordinate to act in a certain time frame. Quite often making the introduction of SLA part of a workflow initiative, provides an incentive to look very carefully to make processes complete and efficient
• Good process definitions are notoriously hard to write and document. A lot of implementations suffer from a lack of clear definitions. Even when the what is clear, the why gets lost. Social tools like a wiki can help a lot
• A good workflow system has a meta flow: a process to define a process. That's the part where you usually get blank stares
• Read a one one or other good book to learn more

There is more to say about workflow, so stay tuned!

Inspired by Paulo Coelho's manual for the Warrior of the Light :

Warriors of Light
We were born from the stars
Descended from the heavens
Armed with compassion
Determined to end the suffering
Subjected to the human condition
Battling ignorance with wisdom
Laying our lives for the liberation from illusion

When you look in the mirror - remember!
You are one of us.

The rising star of web servers currently is node.js, not at least due to the cambrian explosion in available packages with a clever package management system and the fact that " Any application that can be written in JavaScript, will eventually be written in JavaScript" (according to Jeff Atwood).
When talking to IBM Domino or IBM Connections node.js allows for very elegant solutions using the REST APIs. However when talking to a IBM Notes client, it can't do much since an external program needs to be Java or COM, the later on Windows only.
I really like node.js event driven programming model, so I looked around. In result I found vert.x, which does to the JVM, what node.js does to Google's v8 JS runtime. Wikipedia decribes vert.x as " a polyglot event-driven application framework that runs on the Java Virtual Machine ". Vert.x is now an Eclipse project.
While node.js is tied to JavaScript, vert.x is polyglot and supports Java, JavaScript, CoffeeScript, Ruby, Python and Groovy with Scala and others under consideration.
Task one I tried to complete: run a verticle that simply displays the current local Notes user name. Of course exploring new stuff comes with its own set of surprises. As time of writing the stable version of vert.x is 2.1.1 with version 3.0 under heavy development.
Following the discussion, version 3.0 would introduce quite some changes in the API, so I decided to be brave and use the 3.0 development branch to explore.
The fun part: there is not much documentation for 3.x yet, while version 2.x is well covered in various books and the online documentation.
vert.x 3.x is at the edge of new and uses Lamda expressions, so just using Notes' Java 6 runtime was not an option. The Java 8 JRE was due to be installed. Luckily that is rather easy.
The class is rather simple, even after including Notes.jar, getting it to run (more below) not so much:

package com.notessensei.vertx.notes;

import io.vertx.core.Handler;
import io.vertx.core.Vertx;
import io.vertx.core.http.HttpServerOptions;
import io.vertx.core.http.HttpServerRequest;
import io.vertx.core.http.HttpServerResponse;

import java.io.IOException;

import lotus.domino.NotesFactory;
import lotus.domino.NotesThread;
import lotus.domino.Session;

public class Demo {
 public static void main(String[] args) throws IOException {
  new Demo();
  int quit = 0;
  while (quit != 113) { // Wait for a keypress
   System.out.println("Press q<Enter> to stop the verticle");
   quit = System.in.read();
  }
  System.out.println("Veticle terminated");
  System.exit(0);
 }

 private static final int listenport = 8111;

 public Demo() {
  Vertx vertx = Vertx.factory.createVertx();
  HttpServerOptions options = new HttpServerOptions();
  options.setPort(listenport);
  vertx.createHttpServer(options)
    .requestHandler(new Handler<HttpServerRequest>() {
     public void handle(HttpServerRequest req) {
      HttpServerResponse resp = req.response();
      resp.headers().set("Content-Type",
        "text/plain; charset=UTF-8");
      StringBuilder b = new StringBuilder();
      try {
       NotesThread.sinitThread();
       Session s = NotesFactory.createSession();
       b.append(s.getUserName());
       NotesThread.stermThread();
      } catch (Exception e) {
       e.printStackTrace();
       b.append(e.getMessage());
      }
      resp.writeStringAndEnd(b.toString());
     }
    }).listen();
 }
}

Starting the verticle looked promising, but once I pointed my browser to the fun began.

I like to cycle, I do that often and from time to time I have fun with traffic participants. One of the interesting challenges are multi-lane crossings (note to my overseas readers: Singapore follows the British system of driving on the left, so cyclists are supposed to cycle on the left edge of the road - which makes me edgy in some situations. So for right driving countries, just flip the pictures) where the outer lane allows more than one direction. Like these:

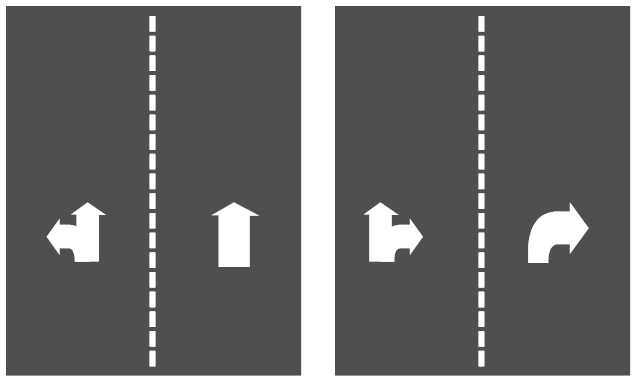

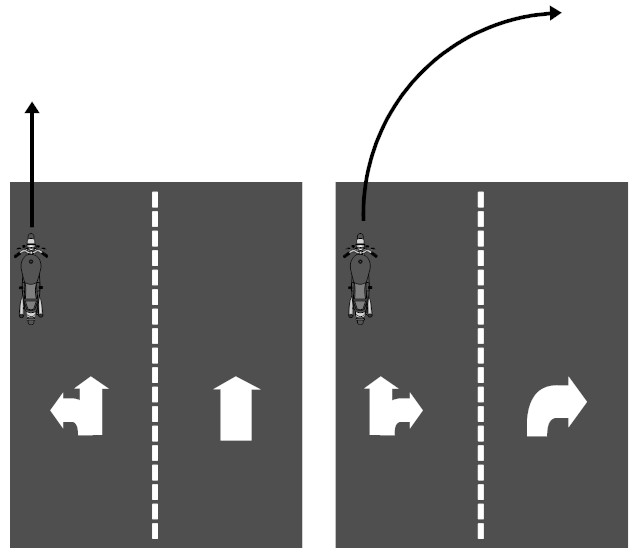

Road rules do require the bike to stay on the left (I didn't find the cycle symbol in SmartDraw, so I used a motorbike, just picture me on a bike there).

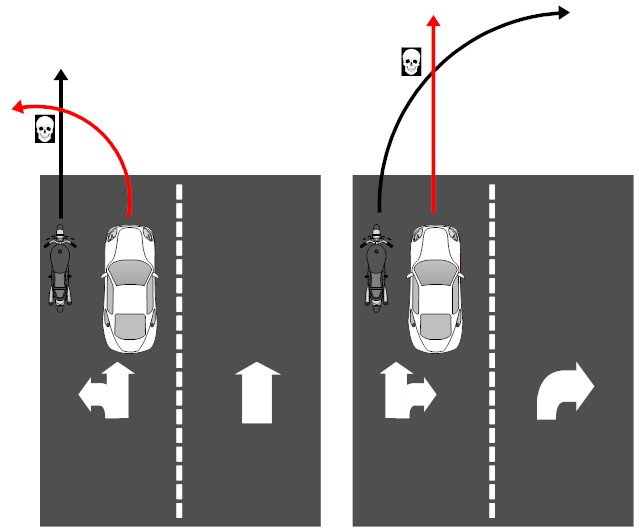

What then happens, I've seen that quite often, is a vehicle closing up next to the cyclist. After all the reason why we stay on the left is not to obstruct other traffic. But that's Roadkill waiting to happen. I've been kicked off a motorbike once (got my shoulder dislocated) because a car felt it is ok to turn right when I was right of it. So I'm sensitive to this problem:

As a result, when there's more than one lane in the direction I need to go and there is ambiguity where traffic in the same lane might be going, I make sure, that it won't happen by occupying the same space as "the big boys". I however pick my trajectory in a way that I end up at the left edge once I cleared the crossing:

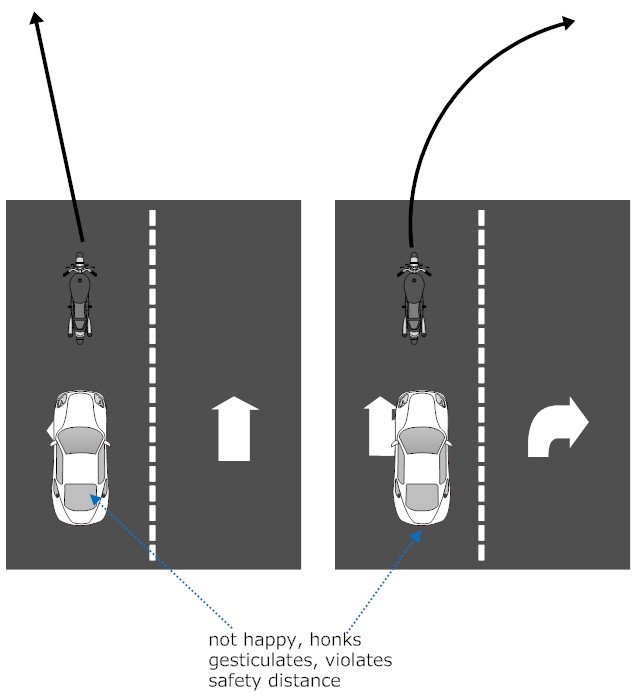

Unsurprisingly some of the motorist aren't happy, after all they loose 2-3 seconds on their journey. So I wonder: is there a better way? Is that behaviour compliant with traffic rules? What do all these rude sounding Hokkien terms mean I do hear?

In the beginning there was csv and the world of application neutral (almost) human readable data formats was good. Then unrest grew and the demand for more structure and contextual information grew. This gave birth to SGML (1986), adopted only by a few initiated.
Only more than a decade later (1998) SGML's offspring XML took centre stage. With broad support for schemas, transformation and tooling the de facto standard for application neutral (almost) human readable data formats was established - and the world was good.
But bracket phobia and a heavy toll, especially on browsers, for processing led to to rise of JSON (starting ca. 2002), which rapidly became the standard for browser-server communication. It it native to JavaScript, very light compared to XML and fast to process. However it lacks (as time of writing) support for an approved schema and transformation language (like XSLT).
This leads to the common scenario that you need both: XML for server to server communication and JSON for in-process and browser to server communication. While they look very similar, XML and JSON are different enough to make transition difficult. XML knows elements and attributes, while JSON only knows key/value pairs. A JSON snippet like this:

{ "name" : "Peter Pan",
  "passport" : "none",
  "girlfriend" : "Tinkerbell",
  "followers" : [{"name" : "Frank"},{"name" : "Paul"}]
}

can be expressed in XML in various ways:

<?xml version="1.0" encoding="UTF-8"?>
<person name="Peter Pan" passport="none">
    <girfriend name="Tinkerbell" />
    <followers>
        <person name="Frank" />
        <person name="Paul" />
    </followers>
</person>

.or.

<?xml version="1.0" encoding="UTF-8"?>
<person>
    <name>Peter Pan</name>
    <passport>none</passport>
    <girfriend>
        <person>
            <name>Tinkerbell</name>
        </person>
    </girfriend>
    <followers>
        <person>
            <name>Frank</name>
        </person>
        <person>
            <name>Paul</name>
        </person>
    </followers>
</person>

.or.

<?xml version="1.0" encoding="UTF-8"?>
<person name="Peter Pan" passport="none">
    <person name="Tinkerbell" role="girfriend" />
    <person name="Frank" role="follower" />
    <person name="Paul" role="follower" />
</person>

(and many others) The JSON object doesn't need a "root name", the XML does. The other way around is easier: each attribute simply becomes a key/value pair. Some XML purist see attributes as evil, I think they do have their place to make relations clearer (is-a vs. has-a) and XML less verbose. So transforming back and forth between XML and JSON needs a "neutral" format. In my XML Session at Entwicklercamp 2014 I demoed how to use a Java class as this neutral format. With the help of the right libraries, that's flexible and efficient.

IT support's dealing with management is a funny business. Whenever something goes wrong, support teams engage in " defensive blaming" and the elusive quest for a root cause.
I've seen this quest (and blaming god and country along the way if it doesn't appear) taking priority over problem resolution and prevention. The twisted thought is: " If I'm not sure about the (single) root cause, I can't neither fix nor prevent it from happening again".

Why is that a folly?

• It paralyses: If a person bleeding enters an ER, the first call to action is to stop the bleeding. Asking: Have all the suppliers of the manufacturer of the blade that caused it have ISO 9000 certifications? Where was the ore mined to make the blade? Root cause analysis is like that. IT support however is an ER room
• It is not real: There is never a single reason. Example: Two guys walk along the street in opposite directions. One is distracted, because he is freshly in love. The other is distracted because he just was dumped. They run into each other and bump their heads. What is the root cause for it?
  You remove a single factor: route chosen, fallen in love, being dumped, time of leaving the house, speed of walking, lack of discipline to put attention ahead of emotion etc. and the incident never would have happened.
  If I apply an IT style root cause analysis it will turn out: it was the second guy's grandfather who is the root cause: He was such a fierce person, so his son never developed trust, which later in the marriage led to a breakup while guy two was young, traumatising every breakup for him - thus being distracted
• There is more than one: as the example shows: removing one factor could prevent the incident to happen, but might leave a instable situation. Once a root cause has been announced, the fiction spreads: "everything else is fine". Example: A database crashes. The root cause gets determined: only 500 users can be handled, so a limit is introduced. However the real reason is a faulty hardware controller that malfunctions when heating up, which happens on prolonged high I/O (or when the data center aircon gets maintained).
  The business changes and the application gets used heavier by the 500 users, crossing the temperature threshold and the database crashes again.
• Cause and effect are not linear: Latest since Heisenberg it is clear that the world is interdependent. Even the ancient Chinese knew that. So it is not, as Newton discovered, a simple action/reaction pair (which suffers from the assumption of "ceteris paribus" which is invalid in dynamic systems), but a system of feedback loops subject to ever changing constraints.

Time is better spend understanding a problem using system thinking: Assess and classify risk factors and problem contributors. Map them with impact, probability, ability to improve and effort to action. Then go and move the factors until the problem vanishes. Don't stop there, build a safety margin.
As usual YMMV

With a public sector customer I had an interesting discussion on non-repudiation, messaging and regulatory control. We were discussing how to ensure awareness of information that has behavioural or legal consequences. While " I didn't know" is hardly a viable defence, relying on the other party to keep themselves updated is just asking for trouble. In a collaborative environment, where a regulator sees itself primarily as the facilitator of orderly conduct and only as policing the conduct as secondary mission, this is inefficient.
An efficient way is a closed loop system of information dissemination and acknowledgement. The closed loop requirement isn't just for regulators, but anybody that shares information resulting in specific behaviour. Just look at the communication pattern of a pilot with air traffic control (paraphrased): Tower: " Flight ABC23 turn to runway 270, descend to 12 thousand feet" - Pilot: " Roger that, turning to 270, descent to 12 thousand"

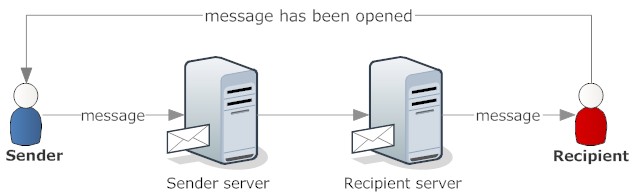

When we look at eMail, the standard mechanism that seems to get close to this pattern are Return Receipts:

Using RFC3798 - Message Disposition Notification - MDN (commonly referred to as Return Receipt) to capture the "state of acknowledgement", is a folly.

1. the RFC is completely optional and a messages system can have it switched off (or delete it from the outbox), so it isn't suitable as guarantee
2. MDN only indicates that a message has been opened. It does not indicate: was it read, was it understood, were the actions understood, was the content accepted (the later one might not be relevant in a regulatory situation). It also doesn't - which is the biggest flaw - indicate what content was opened. If the transmission was incomplete, damaged or intercepted a return receipt wouldn't care.

So some better mechanism is needed!

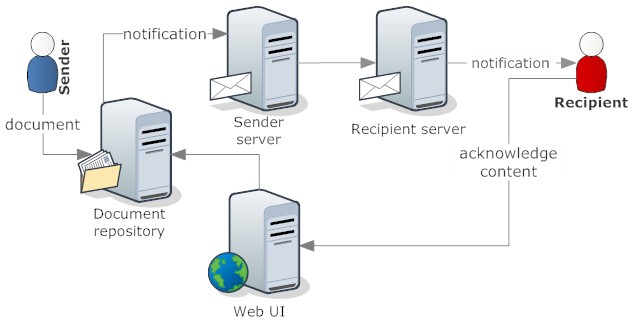

Using documents that have a better context a closed loop system can be designed. When I say "document" I don't mean: propriety binary or text format file sitting in a file system, but entity (most likely in a database) that has content and meta information. The interesting part is the meta information:

• Document hierarchy: where does it fit in. For a car manufacturer recalling cars that could be: model, make, year. For a legislator the act and provisions it belongs in
• Validity: when does it come into effect (so one can browse by enactment date), when does (or did) it expire
• History: which document(s) did it supersede, which document(s) superseded it
• Audience: who needs to acknowledge it and how fast. Level of acknowledgement needed (simple confirmation or some questionnaire)
• Pointer to discussion, FAQ and comments
• Tags

An email has no structured way to carry such information forward. So a document repository solution is required. On a high level it can look like this:

Messaging is only used for notification of the intended audience. Acknowledgement is not an automatic, but a conscious act of clicking a link and confirming the content. The confirmation would take a copy of original text and sign it, so it becomes clear who acknowledged what. An ideal candidate would be XML Signature, but there isn't a model how to sign that from a browser. There is an emerging w3C standard for browser based Crypto, that has various level of adoption:

• Mozilla
• Internet Explorer 11++
• Chome and Chromium

Once you have dedicated records who has acknowledged a document, you can start chasing, reliable and automated, the missing participants and, if you are a regulator, take punitive actions when chasing fails. It also opens the possibility to run statistics how fast what type of documents get adopted.

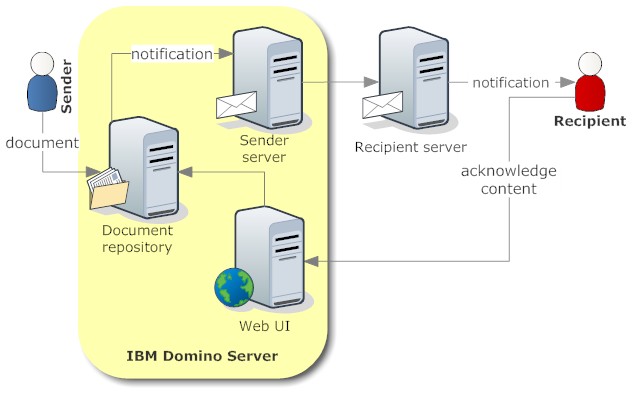

The big BUT usually is: I don't want to deploy additional 2 servers for document storage and web access. The solution for that is, you might have guessed it, is Domino. One server can provide all 3 roles easily:

As usual YMMV
