How deep do you authenticate?

Accessing applications usually entails some kind of identity. Some part(s) of your application provide identity (called IdP), while other's consume it (paraphrased from Captain Obvious). Identity could be provided from a record or document in your or another database, an LDAP directory, an OICD or a 3d party like your eMail provider or social account, or with some hoops and loops Webauthn (a.k.a passkey).

The question is: how deep does it go?

A typical archtecture

For simplicity I'm skipping load balancers and cache facilities

ApplicationTiers 0-4

Each tier might or might not have its own identity, lets have a closer look

(0) User tier

When is authentication information stored at the user tier (think Browser, app or OS) and how immediate is it? Like a username/password or a passkey private key. Those can be exchanged for a token. Or is it a session cookie or an access_token allowing immediate access? How are those credentials protected and/or synced? How vulnerable are they on physical access?

(1) Access tier

A.k.a the firewall or VPN Does it assert a valid user? Are the credentials the same or different from your application. Does your access tier include IP ranges or geo location as part of identity? I've seen identity requirements 100% on VPN, but rarely on firewalls

(2) Web tier

TYpically you find a static web server like nginx, Apache http, the Kubernetes Ingress or a service by a cloud provider.

Even when all your static resources are served by your application tier, you can identify your web tier where requests flow through. When you can establish identity there (and reject invalid ones), you have one more protective layer. nginx+ can do that with JWT

(3) Application tier

YOur application could be a monolith, microlith, microservice, follow a layered architecture, be message driven, event driven or be contemporary with the hexagonal architecture. In any case your user facing access will require identity.

It becomes blurry when your user facing services then call out to other services (via http or message/event), what identity are they using to communicate: user, service or both? You might start looking at RBAC. In any case, this needs to be planned carefully

(4) Persistence / database tier

The prevalent examples you find online , especially in the realm of DBaaS, use just one service identity to access your persistence (file system, database , imp, etc.). So database logs won't tell you who accessed data (RW/RO) and you won't have a chance to implement row level security.

Interestingly this isn't a limitation of databases, they all come with user management, but rather the headache maintaining it or setup another auth

When we designed the Domino REST API, we decided to stick to the JWT based user identity all the way to the database. Apache CouchDB also allows for JWT based authentication. It was lacking the ability to point to an IdP's jwks, so I contributed the CouchDB IdP updater, go check it out.

How do you use identity?

Posted by on 23 June 2024 | Comments (0) | categories: Development Identity Management JWT WebDevelopment

NoSQL schema design

A question that pops up frequently in developer discussions is "how to structure your data in a NoSQL way?". To shed a light on this, we have a look at the approach invented 50 years ago and still an all time favorite


In a simple order example, we are looking at four tables:

  • Customer
  • Product
  • Order
  • OrderEntry

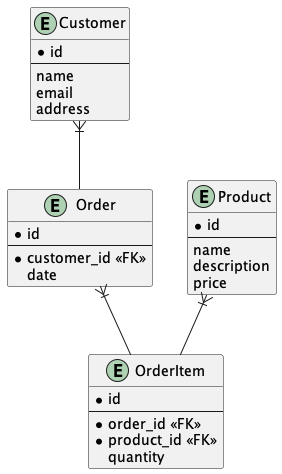

CLassic SQL schema

In this design, there are no duplicates and some simple SQL can list out all I need, for example the order value for a given order:

SELECT oi.order_id,
       SUM(oi.quantity * p.price) AS order_total
FROM OrderItem oi
JOIN Product p ON oi.product_id = p.id
GROUP BY oi.order_id
WHERE oi.order_id = 67111;

or the revenue per customer:

SELECT c.id AS customer_id,
       c.name AS customer_name,
       SUM(oi.quantity * p.price) AS revenue
FROM Customer c
JOIN Order o ON c.id = o.customer_id
JOIN OrderItem oi ON o.id = oi.order_id
JOIN Product p ON oi.product_id = p.id
GROUP BY c.id, c.name;

Read more

Posted by on 06 June 2024 | Comments (0) | categories: NoSQL WebDevelopment
